Dr. Giuseppe Aresu of the University Hospital of Udine, Italy presents a case of thymectomy by subxyphoid approach
Article originally published October 31, 2015
We report the case of a thymectomy performed through a subxyphoid vertical single incision port carried out in a 51 years old female myasthenic patient presenting a Masaoka stage I thymoma.
The subxhyphoid approach permits an excellent view of the mediastinal anterior region and of the two pleural spaces giving the surgeon the possibility to perform a very radical and safe dissection of the thymic and peri-thymic fatty tissues.
Considering the position and the 3.5 cm length of the port, it is esthetically excellent. Without a sternal incision, or VATS – associated intercostal nerve injury, the recovery can be faster and less painful than the sternotomy approach or other vats approaches carried out through the intercostal spaces.
Technique
We performed extended thymectomy through a uniportal subxiphoid approach in a 51 years old female presenting a thymoma of 2.5 cm and myasthenia gravis.
The patient was informed about the risks and the benefits of the procedure and the consent to carry on with the operation was obtained.
Under general anesthesia, the patient was intubated with a double-lumen endotracheal tube and artificial ventilation was applied.
The patient was placed in a supine position with a silicon roll positioned below the lower part of the chest in order to lift the subxiphoid region.
The operating surgeon stood on the right side of the patient, the assistant stood on the patient’s left side and operated the endoscope. The monitor was positioned at the right side of the patient toward the cranial side of the bed.
A 3.5-cm longitudinal muscle sparring incision was made below the xiphoid process between through the linea alba.

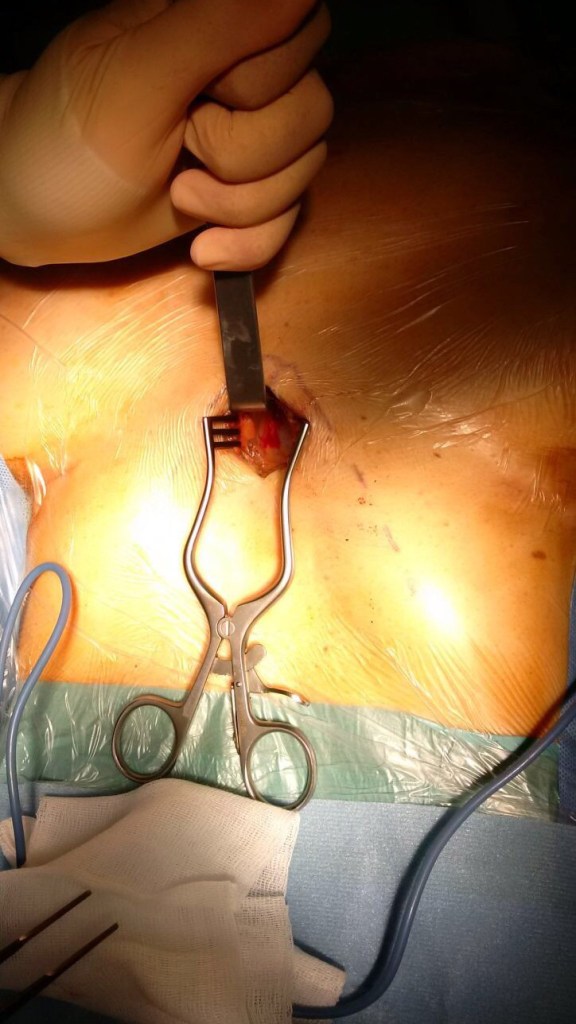

the incision
The xiphoid process was exposed, the inferior part of the sternum was lifted up with a retractor and a blunt dissection was carried out in order to find the pericardial plane.

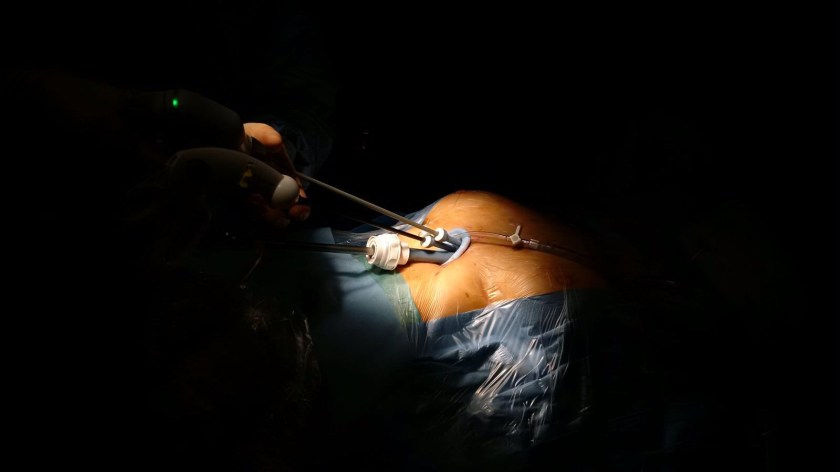

A SILS port (Covidien, Mansfield, MA) was then inserted into the port, and CO2 was insufflated at a maximal pressure of 8 mm Hg. The CO2 insufflation within the mediastinum generates a very useful amount of extra working space within the anterior-superior mediastinum allowing an easier dissection and a better visualization of the mediastinal structures especially toward the cranial part of the mediastinum cephalad to the left innominate vein including the upper poles of the thymus.
Under visual guidance provided through a 10-mm EndoCAMeleon® Telescope, the operator utilized grasping forceps designed for single-incision surgery with his left (SILS Hand Instruments Endo Clinch™ II (Covidien) and performed dissection, coagulation, and division of tissue mainly using the Sonicision™ cordless ultrasonic dissection device (Covidien, Mansfield, MA) and occasionally using a normal straight hook cautery.
The bilateral phrenic nerves and the bilateral mammary arteries and veins were always under optimal control as well as the cranial part of the mediastinum permitting a safe dissection en bloc of the thymus, thymic tumor, and surrounding fatty tissue anterior to the phrenic nerves.
The operation time was about 2 hours and 30 minutes, and blood loss was minimal.
No complications occurred during or after the operation, the drain was taken out after one day and the patient was discharged home 2 days after surgery.
closed incision
Postoperative pain was very low requiring just 1 g X 3 daily of paracetamol during the hospital stay, and no analgesic administration after the discharge.
This case was later published (Dec 14, 2015) at CTSnet. Congratulations Dr. Aresu!
Additional Reading
Suda, T. (2016). Single-port thymectomy using a subxiphoid approach-surgical technique. Ann Cardiothorac Surg. 2016 Jan;5(1):56-8. doi: 10.3978/j.issn.2225-319X.2015.08.02. Review. Free fulll text discussion of a similar case by Japanese surgeon. This article includes a video presentation and a in-depth discussion of technical aspects of the case such as surgeon position and camera access.
aka, “Why we should be nice to plastic surgeons”. This case study highlights the need for close interdisciplinary partnerships among surgeons and also asks the question, “Are we addressing the emotional and psychosocial needs of our patients and their families?”
Bronchopleural fistula: an abnormal communication between the exterior environment and the pleural cavity, often caused entry of bacteria, fluids and other substances into the chest cavity by way of the bronchial tree, for example: bronchial stump breakdown. BPF most commonly occur after large thoracic surgeries such as pneumonectomy but can occur for other reasons such as infection or trauma.
Bronchopleural fistulas (BPF) are a dread complication of thoracic surgery that has (thankfully) become rare in most countries in the last few decades. Treatment of a large bronchopleural fistula can be massive undertaking requiring collaboration and cooperative from multiple specialties including radiology, infectious disease, pulmonology, wound management and plastic surgery.
Patients often endure several months of surgical and wound care treatments prior to undergoing definitive surgical management for this condition. This treatment includes the surgical creation of large open wounds to facilitate drainage of purulent materials, repair of the fistula tract and bronchial stump and debridement / revascularization for proper tissue healing. The case presented today illustrates the devastating emotional, physical and financial costs of bronchopleural fistula as well as the need for interdisciplinary collaboration for definitive surgical repair.
Surgical repair itself carries an elevated risk of morbidity and mortality primarily from respiratory complications, infections/ sepsis and hemorrhage.
More than physical consequences
Bronchopleural fistulas carries more than just the physical consequences of pain and disability for patients and their families. There are also devastating emotional and social effects. Patients can experience a myriad of psychosocial effects from this chronic wound and related treatment. The resultant deformity from many drainage and wound management techniques, in particular, can lead to depression and social ostracism. The development of a bronchopleural fistula can contribute to relationship and intimacy issues. Several of the surgeons interviewed including Dr. Boxiong specifically mentioned both divorce and suicide as being a risk in numerous cases[1].
Case Study
Dr. Boxiong Xie, thoracic surgeon
Dr. Dong Jiasheng & Dr. Zheng, Reconstructive/ Plastic Surgeons
Dr. Boxiong Xie, thoracic surgeon
The patient is a young male in his early forties who had undergone a right upper lobectomy for cancer several years prior at a facility in a far away province. He then presented with a large empyema. Initially, conservative treatments were attempted. The patient underwent several drainage procedures, by both open and closed methods. These measures along with attempts to repair the bronchial stump failed due to extensive infection and tissue destruction.
Following the failure of more conservative measures, the patient presented to this facility for specialty care. He had heard about this program, and travelled a long distance to be here at significant difficulty and expense. As his surgeon explained, “it’s his last chance at a normal life.”

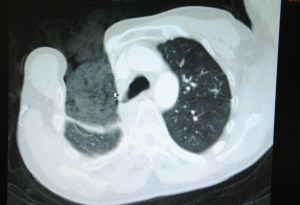

Over the continuing course of his treatment, a large opening on the anterior chest was created surgically. Due to the extent of necrotic tissue, this required the removal of anterior sections of ribs #2, 3, 4 and 5, leaving the patient with a very large open cavity, as seen in CT slices (pulmonary and tissue windows).
packing material can be seen in the right chest cavity.

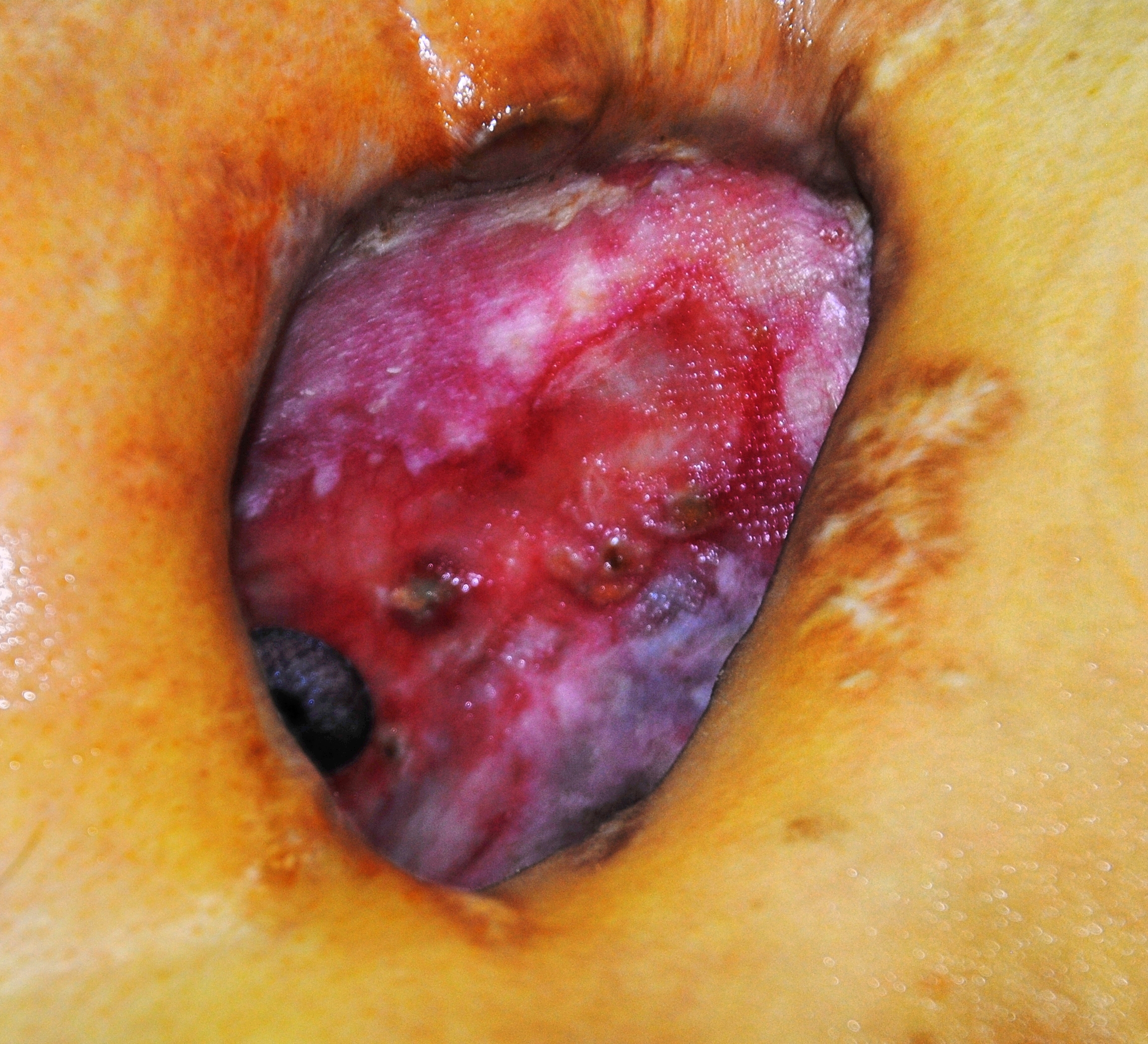

tissue window showing extent of wound
This large cavity was left open for a period of around two years, while infected material was debrided and evacuated, and aggressive wound management was continued. At the time of his presentation to the operating room, the wound bed is dry and pink with a small amount of slough. An opening to the bronchus is visible (with bubbling on respiration at the site of the wound). The wound measures approximately 6 cm X 4 cm. As seen from the CT images above, the wound was also several centimeters in depth.
overview of wound – which tracks upwards several cm towards shoulder
The wound tracks up towards the shoulder, making it deeper and larger than it initially appears on gross visualization. There is a visible pulsation from the border of the cavity, (which may add to the patient and family’s distress).
Surgical procedure:
After the wound is cleaned and prepared with betadine solution, the anesthesiologist introduces a bronchoscope into the airway, for illumination and visualization of the airway. The light from the scope is immediately visible to observation within the chest. At that point, amplatzer patch was inserted into the bronchial stump.
Amplatzer patch visible in the chest cavity
After placement of the patch was confirmed, the patient was re-prepped, and draped. Dr. Boxiong expands the existing wound, and dissects down to healthy bleeding tissue, removing yellow eschar. The wound is lightly packed with moist gauze.
thoracic surgeons dissect down to healthy tissue (anterior wound site)

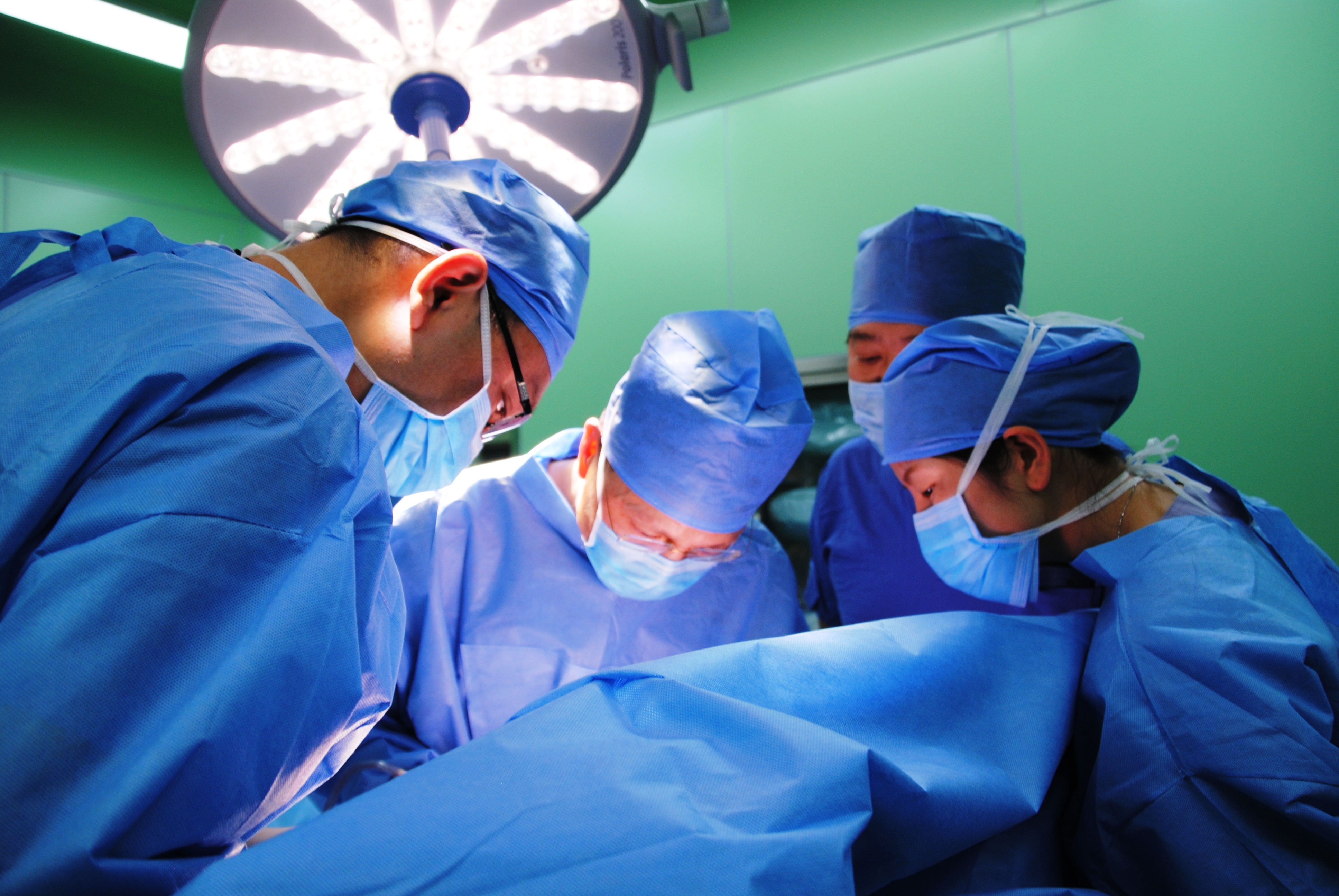

Then Dr. Dong and his assistant surgeon arrive, to start their portion of the operation. Dr. Dong starts another incision approximately 3 cm below the wound area. The incision is extended to the left side of the chest. The surgeon dissects down through skin, adipose and fascia to free the right internal mammary artery to use to ensure that the graft is well vascularized.
preparing the internal mammary artery for eventual anastomosis
Next step: Flap harvesting
Once the IMA was free, it was temporarily secured, and the wound was dressed. The patient was re-positioned, and re-prepped to allow access to the posterior aspect of the left chest. Due to muscle devascularization from the multiple previous surgeries on the right anterior chest, the surgeon harvests the left latissimus dorsi, using a large diamond-shaped incision.

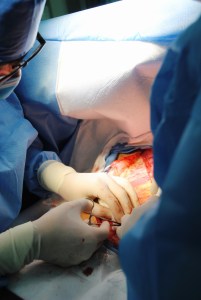

Harvesting the myocutaneous flap from posterior chest
Once the flap was harvested, the patient was left with a large open defect, without enough surrounding skin to cover the area. The surgical site is dressed with a temporary dressing while Dr. Dong moves on to his next surgical site.
Next step: Skin Harvesting
Dr. Dong prepares to harvest skin for grafting
After preparing the patients right thigh, Dr. Dong applied a Padgett dermatome to shave off a thin layer of skin.

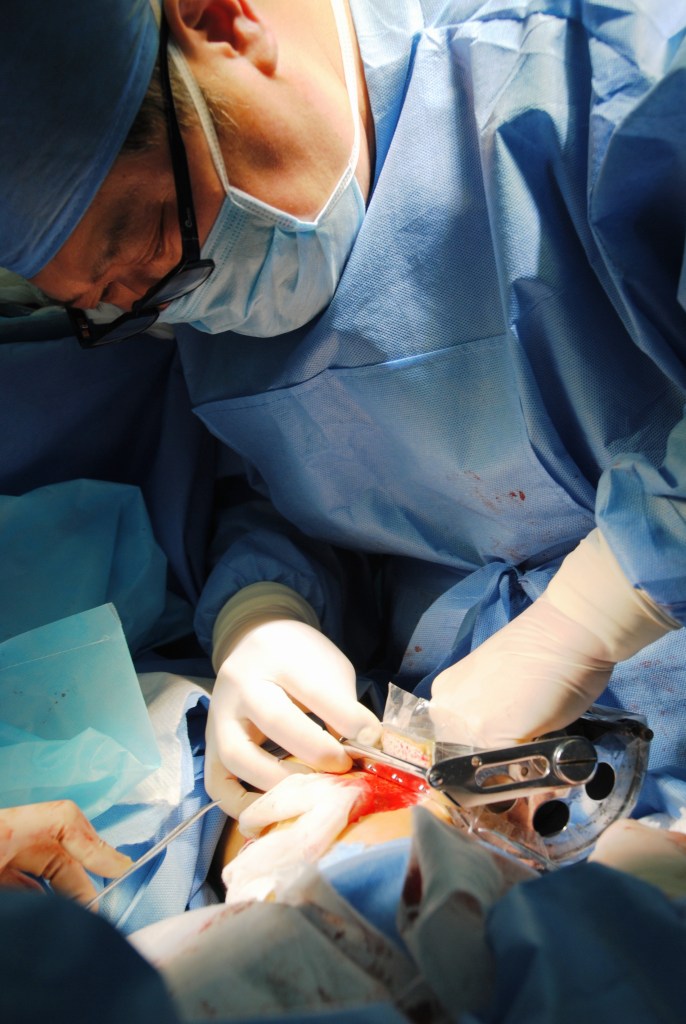

Harvesting skin from patient’s thigh
After multiple passes, the surgeons have enough skin to cover the defect from the flap site.
Skin harvested to cover flap site
Next step: Skin Grafting

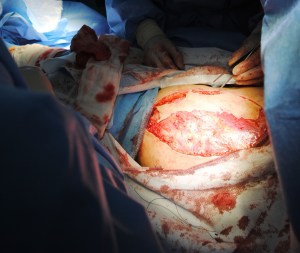

Skin grafting at the myocutaneous flap site
The thin strips of skin were applied to the flap site and sutured into place.
suturing skin graft over flap harvest site (on back)
Once the sutures were completed, the wound was re-dressed and the patient was re-positioned for the last steps of the operation.
Next step: Anastomosis of mammary artery to flap
surgeons using the microscope to complete vascular anastamoses
Following re-positioning to supine position, the flap was placed within the right chest wound. The flap was loosely sutured into place to maintain a proper position while the painstaking vascular anastomoses were performed. Once the anastomoses were completed, the remaining incisions were carefully closed.
Total surgical time was greater than ten hours.
Discussion
As discussed by Lois and Noppen (2005), BPF management has traditionally been performed in a piece meal or stepwise fashion, with surgical interventions reserved as a last resort. Unfortunately, for some patients, this means that BPF becomes a chronic illness. As a chronic illness, (and all that chronic illness entails such as chronic malnutrition, chronic inflammation, long-term antibiotic therapy), the morbidity and mortality of this condition continues to increase for the duration of the illness. In the case study above, a relatively young, now cancer-free patient had now developed much of the disabilities associated with elderly patients due to the chronic nature of his illness (BPF after a lobectomy ten years prior). This certainly places the patient at significant risk for major complications once a large-scale definitive surgery is performed. Van Schill et al. (2014) notes that better understanding regarding the need for interdisciplinary management including aggressive physical therapy and nutritional support have reduced some of these complications.
While the impact of bronchopleural fistulas are usually discussed in terms of mortality, financial costs (surgical costs) and length of stay,and for this case, we would like to take a closer look at morbidity and quality of life issues raised by the development of this complication.
While BPF is rare, it truly can be a life-altering and destructive diagnosis. In addition to pain, physical debility, there may be gross deformity coupled with chronic wound care. Deformities caused by extensive tissue destruction and removal of several ribs can cause significant emotional and psychological anxiety and stress in both the patient and family members. The visible pulsation (cardiac movement) seen within the wound may exacerbate this anxiety. The stress of this wound combined with additional stressors related to this diagnosis have been observed to lead to a higher rate of marital discord and patient suicide. Patients may also feel a loss of sexuality and personal identity in the presence of this type of disfigurement, similar to some women after radical mastectomy (particularly in female patients).
To add insult to injury, unlike many conditions which can be readily corrected surgically, the creation of myocutaneous flap (and subsequent skin grafting) itself causes additional disfigurement. This patient required a lengthy (ten hour) surgery which resulted in the creation of three new surgical sites in addition to the patient’s original right-sided chest wound. While this is a drastic example, it does serve to highlight the on-going need to consider the psychological and emotional well-being of this patient (and all our patients).
BPF and professional relationships?
This case also reminds of the need for good interdisciplinary relationships. In thoracic surgery, cosmetic outcomes (other that pursuing minimally invasive options when possible) are not usually one of our primary considerations. This leaves us at a disadvantage when managing patients with such a drastic complication. We don’t always have a strong network or relationships with other surgical or medical disciplines outside of oncology or oncology-related fields. We need to take the opportunities available to become more familiar with our local reconstructive surgeons, as well as the latest techniques in reconstructive surgery. It’s not “good enough” to know the name of one of the plastic surgeons we brush elbows with in the surgical waiting lounge. It is not just about referrals and compensation. It is about having an open and free dialogue with surgical colleagues, so that when we do require their assistance, we can work together smoothly and coördinate care.
Consider the need to include social workers, psychologists and other counseling services in both the preoperative and postoperative care of our patients, when necessary for their long-term health and wellness. Unfortunately, due to social stigma, health care/ insurance or financial restrictions as well as provider hesitation**, not enough of our patients receive consultations or referrals to appropriate resources. We can’t change insurance regulations, but by becoming more familiar with our local resources and providers, we can overcome many of the other barriers to supporting our patients emotional health.
[1] I was unable to find literature that specifically cites BPF as a contributing factor to psychosocial complications such as divorce, depression or suicide but the impact of chronic wounds on emotional health, family life and other quality of life indicators are well documented. However, Okonta et. al (2015) and Lois & Noppen (2005) both cite QoL issues in patients with BPF.
** Provider hesitation is a nice term for all the reasons providers sometimes fail to seek mental health referrals for patients; such as fear of embarrassing our patients, believing that counseling is only needed for psychiatric emergencies, failure to understand local resources available, or our own discomfort with mental health “issues”.
References and Additional Readings
Arnold, P. G. & Pairolero, P. C. (1990). Intrathoracic muscle flaps: an account of their use in the management of 100 consecutive patients. Annals of Surgery, 1990; 211(6): 656-660. Study looking at one hundred cases from May 1977 and February 1988. In this potent reminder of the morbidity and mortality that is associated with patients requiring muscle flaps, as well as the advances in medicine over the last two decades, there were 16 operative deaths and 43 additional all-cause deaths in the operative survivors. Interestingly, one of these late-term deaths was due to suicide.
Goyal VD1, Gupta B2, Sharma S3 (2015). Intercostal muscle flap for repair of bronchopleural fistula. Lung India. 2015 Mar-Apr;32(2):152-4. doi: 10.4103/0970-2113.152628. Indian case study of patient presentation of BPF after treatment for spontaneous pneumothorax.
Van Schil PE1, Hendriks JM1, Lauwers P1 (2014). Focus on treatment complications and optimal management surgery. Transl Lung Cancer Res. 2014 Jun;3(3):181-6. doi: 10.3978/j.issn.2218-6751.2014.06.07. Belgian paper reviewing outcomes of 3,500 surgeries.
Levine, L. A. (2013). The clinical and psychosocial impact of Peyronie’s disease. Am J Manag Care. 2013 Mar;19(4 Suppl):S55-61. While unrelated to thoracic surgery, patients with Peyronie’s disease have many of the same emotional and psychological stressors as patients with other chronic wound conditions such as BPF.
As Dr. Gonzalez Rivas demonstrates, minimally invasive surgery isn’t just for “easy” cases. Case study with brief discussion and literature review
Uniportal VATS with chest wall resection at Shanghai Pulmonary Hospital
Shanghai, China
Authors: Gonzalez – Rivas, D. & Eckland, K.
Surgeons: Dr. Diego Gonzalez Rivas with Dr. Boxiong Xie assisting.
Case: 66-year-old patient with large left upper lobe mass extending into chest wall, biopsy proven carcinoma.
Pulmonary function tests – within acceptable margins
Imaging:

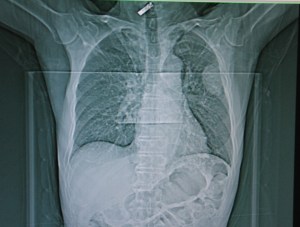

CT scan – showing a large left-sided lung upper lobe mass with chest wall invasion and rib involvement at the level just beneath the scapula.
Procedure: Uniportal (single incision) VATS with rib resection
Description: at a glance

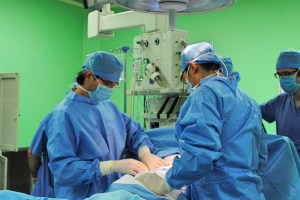

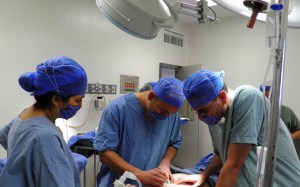

Determining port placement
Due to tumor location, port placement had to be carefully considered and adjusted.
Vital signs at initiation of operation: HR 78, NSR B/P 95/56 Oxygen saturations: 100% (intubated with double lumen ETT)
First incision: 14:17

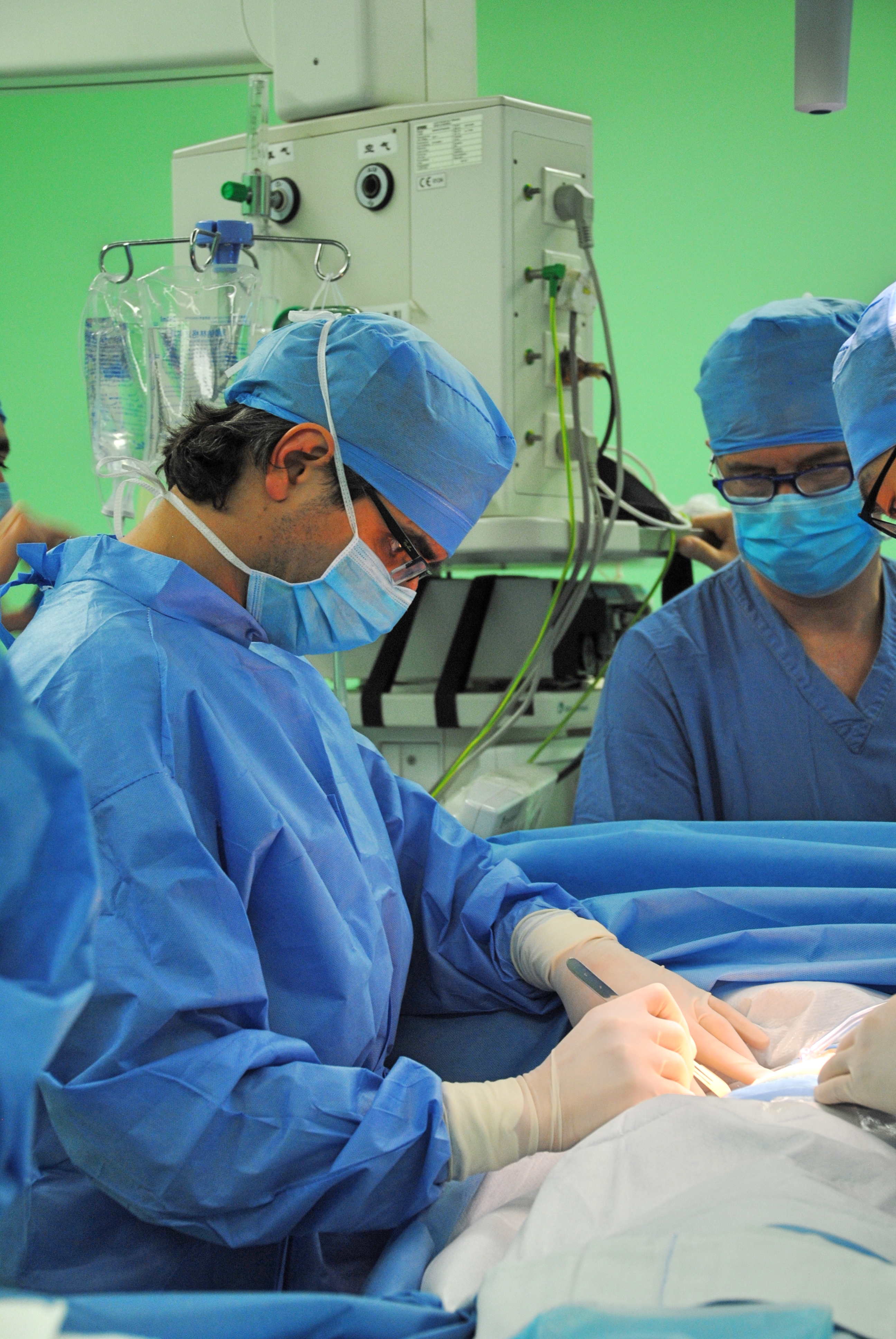

Making the initial incision
The tumor was adherent to the chest wall, requiring chest wall resection with rib resection.

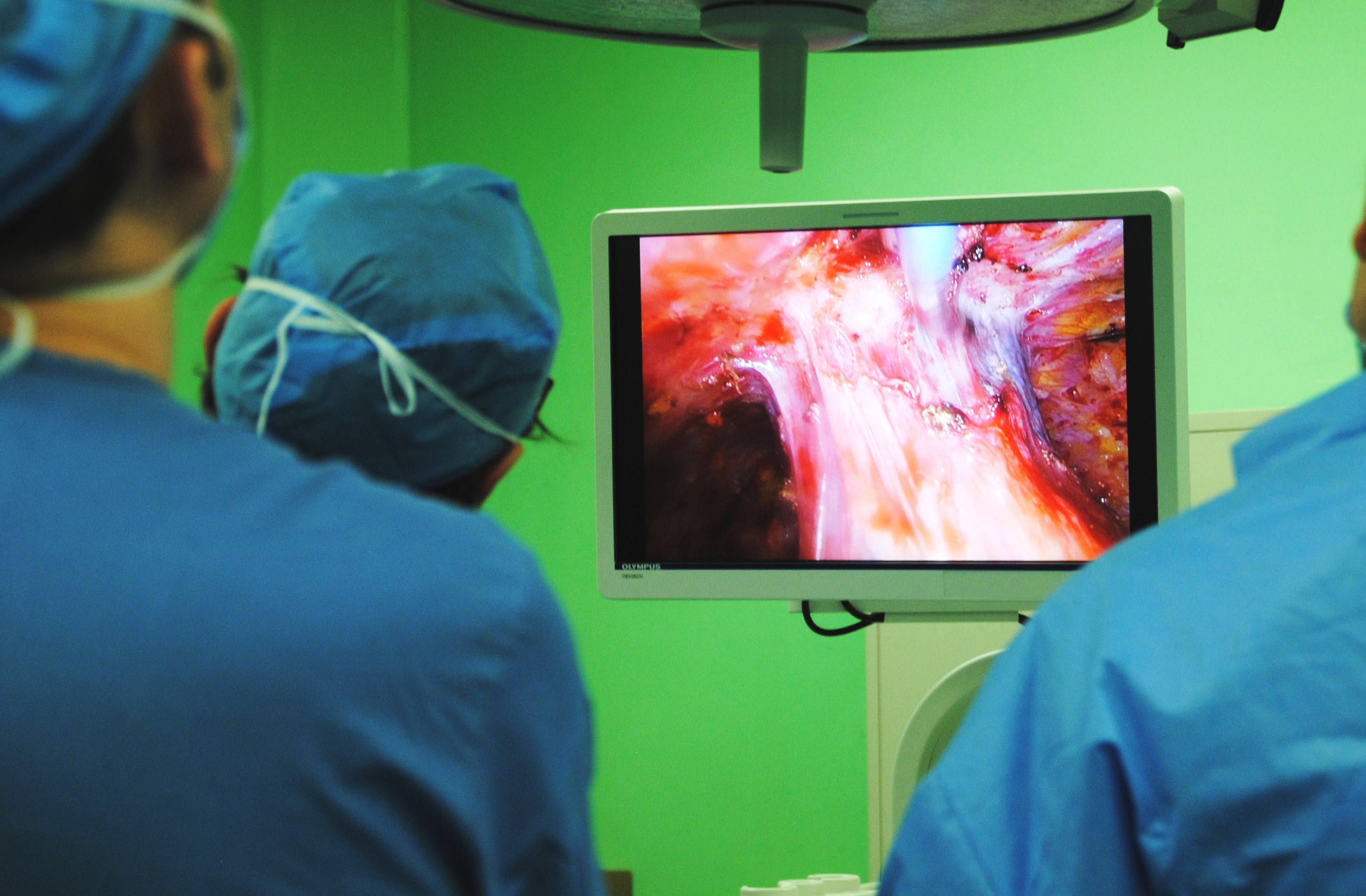

performing uniportal VATS for tumor with chest wall invasion
The tumor was palpated thru the 2 cm incision allowing the surgeon the benefit of open surgery despite using a minimally invasive technique.

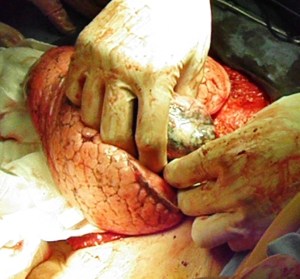

Palpating the tumor

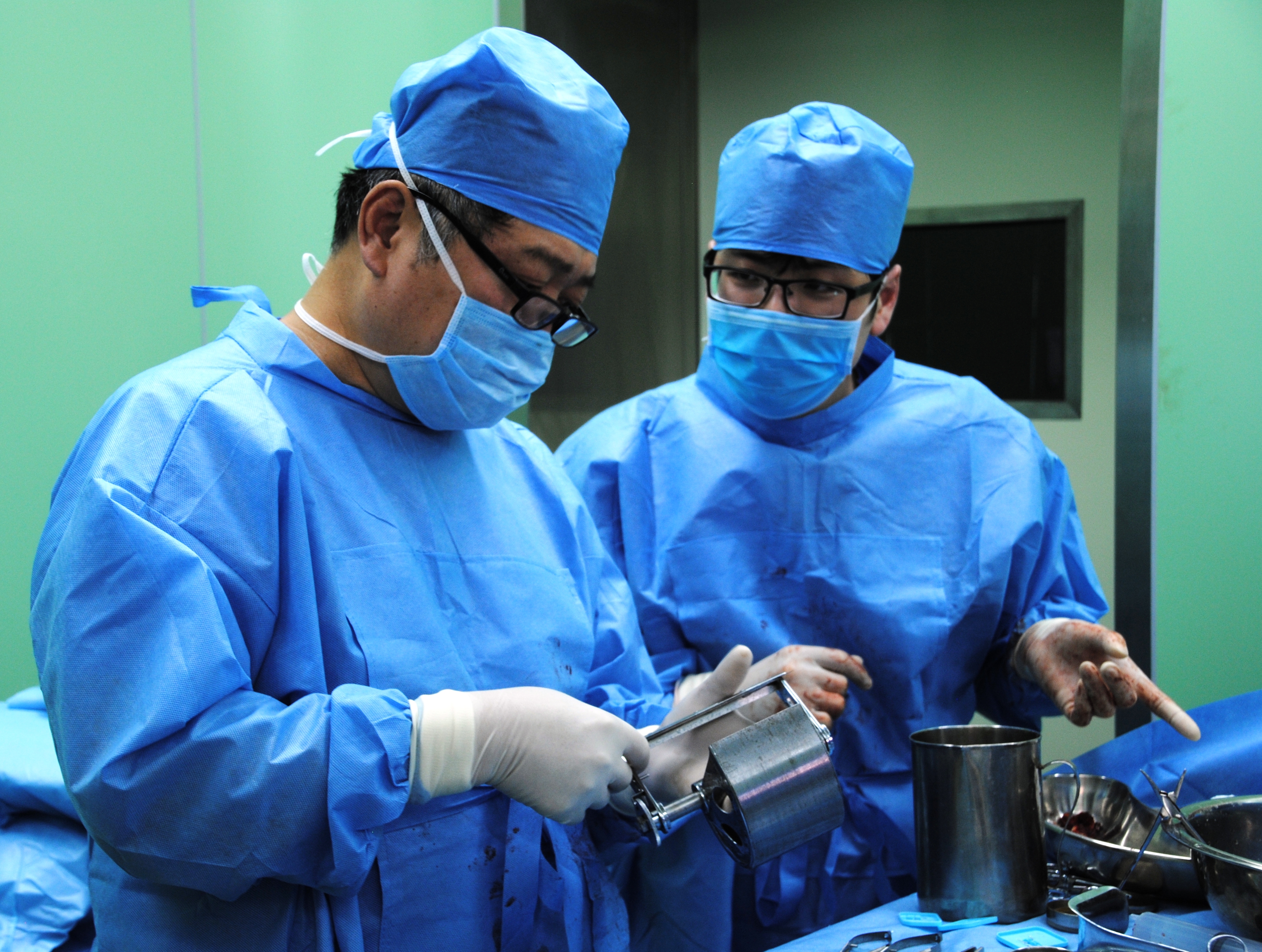

Ribs were resected using a guillotine designed for minimally invasive use.

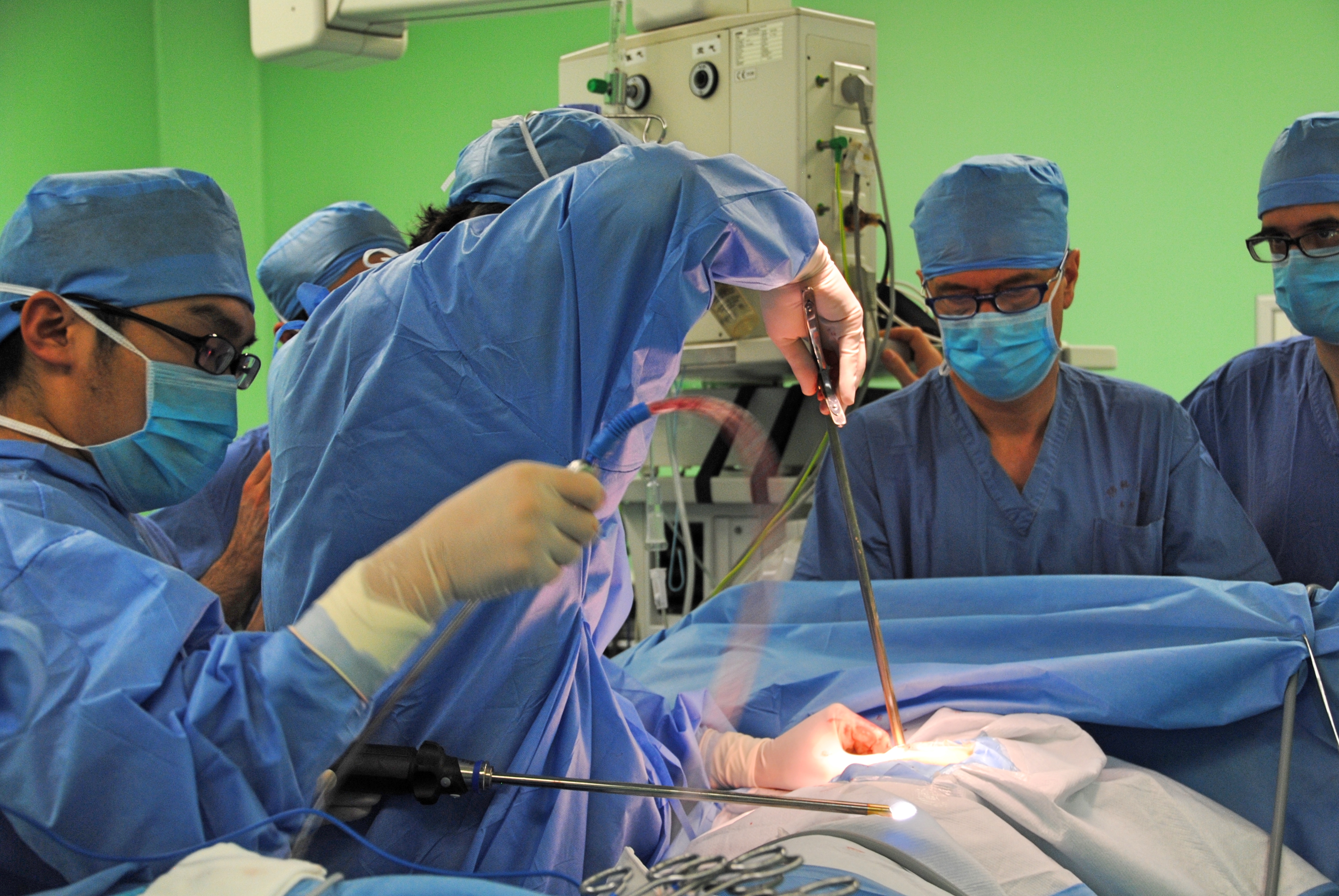

Rib resection
Lung resection complete at 17:42. The tumor was removed enblock using a bag system to prevent tumor spillage.

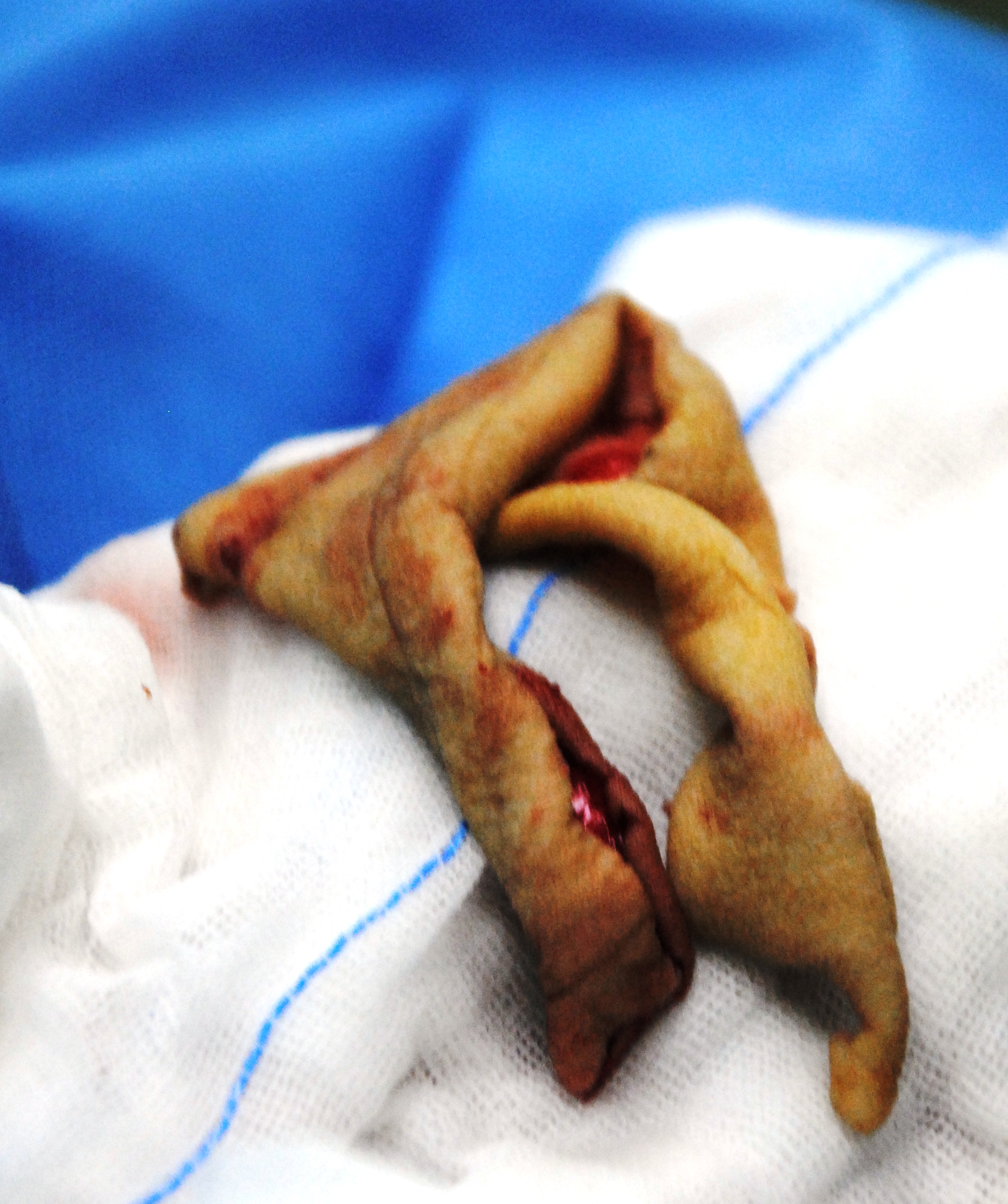

Tumor enblock after removal
Lymph node dissection completed at 17:56
There was a brief run of PVCs lasting about 30 seconds (B/P 83/54) with no desaturations. Patient was otherwise hemodynamically stable for the duration of the case.
Frozen section: clear pleural margins
EBL: 200ml
Discussion:
As noted by Pischik and others, many of the traditional contraindications for VATS procedures are no longer applicable, particularly for surgeons well versed in minimally invasive techniques like uniportal thoracoscopic surgery. In the case above, several of these contraindications were successfully addressed, including multiple adhesions, an incomplete interlobar fissure and a tumor with chest wall involvement.
That being said, this case was technically challenging from start to finish, due to the position of the chest wall tumor that required adjustment of port placement, a lengthy dissection of dense adhesions in addition to a sizeable chest wall mass. Hilar dissection was complicated by anatomical position, and the bronchus was difficult to access. This in addition to an incomplete fissure significantly lengthened the procedure.
VATS resection using a single port approach can be challenging even for experienced surgeons. However, it is a viable alternative for more complicated cases including those requiring a degree of chest wall resection.
This case was just one of numerous cases performed by Dr. Diego Gonzalez Rivas as part of the Uniportal VATS training course at Shanghai Pulmonary Hospital. Dr. Diego Gonzalez Rivas is the inventor of the uniportal technique and Director of Uniportal VATS training program at Shanghai Pulmonary Hospital. He has partnered with the Chinese facility to offer training courses for interested surgeons three times a year, in addition to his ‘wet-lab’ surgical training offerings in his home facility at La Coruna, Spain.
in the operating room with Dr. Diego Gonzalez Rivas for single port thoracoscopic (uniportal) surgery.
Hilar mass resection using single port thoracoscopy with Dr. Diego Gonzalez – Rivas
K. Eckland & Andres M. Neira, MD
Instituto Nacional de Cancerlogia
Bogota, Colombia
Surgeon(s): Dr. Diego Gonzalez Rivas and Dr. Ricardo Buitrago
Dr. Diego Gonzalez Rivas demonstrates single port thoracoscopy
Case History:
59-year-old female with past medical history significant for recurrent mediastinal mass previously resectioned via right VATS. Additional past medical history included prior right-sided nephrectomy.
Pre-operative labs:
CBC: WBC 7230 Neu 73% Hgb:14.1 Hct 37 platelets 365000
Pt 12.1 / INR1.1 PTT: 28.3
Diagnostics:

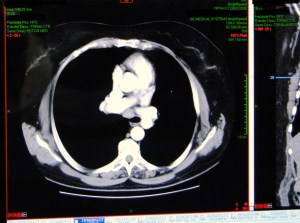

Pre-operative CT scan: chest
edited to preserve patient privacy
Procedure: Single port thoracoscopy with resection of mediastinal mass and lymph node sampling
After review of relevant patient history including radiographs, patient was positioned for a right-sided procedure. After being prepped, and draped, surgery procedure in sterile fashion. A linear incision was made in the anterior chest – mid clavicular line at approximately the fifth intercostal space. A 10mm port was briefly inserted and the chest cavity inspected. The port was then removed, and the incision was expanded by an additional centimeter to allow for the passage of multiple instruments; including camera, grasper and suction catheter.
Dr. Gonzalez Rivas and Dr. Ricardo Buitrago at National Cancer Institute
The chest cavity, pleura and lung were inspected. The medial mediastinal mass was then identified.
As previously indicated on pre-operative CT scan, the mass was located adjacent and adherent to the vessels of the hilum. This area was carefully dissected free, in a painstaking fashion. After freeing the mediastinal mass from the hilum, the remaining surfaces of the mass were resected. The mass was fixed to the artery pulmonary and infiltrating it) . The mass was removed en-bloc. Care was then taken to identify, and sample the adjacent lymph nodes which were located at stations (4, 7 and 10).
Following removal of the tumor and lymph nodes, the area was re-inspected, and the lung was re-inflated. A 28 french chest tube was inserted in the original incision, with suturing of the fascia, subcutaneous and skin layers.
closing the single port incision
Hemostasis was maintained during the procedure with minimal blood loss.
Patient was hemodynamically stable throughout the case, and maintained appropriate oxygen saturations. Following surgery, the patient was awakened, extubated and transferred to the surgical intensive care unit.
Post-operative: Post-operative chest x-ray confirmed appropriate chest tube placement and no significant bleeding or pneumothorax.
Immediate post-operative film (chest tube visible)
Patient did well post-operatively. Chest tube was discontinued on POD#2 and discharged home.
PA & LAT films on post-operative day 2
Discussion: Since the initial published reports of single-port thoracoscopy, this procedure has been applied to an increasing range of cases. Dr. Gonzalez and his team have published reports demonstrating the safety and utility of the single-port technique for multiple procedures including lobectomies, sleeve resections, segmentectomies, pneumonectomies and mediastinal mass resections. Dr. Hanao Chen (Taiwan) has reported several successful esophagectomies using this technical, as well as bilateral pleural drainage using a unilateral single-port approach.
Contrary to popular perception, the use of a single-port versus traditional VATS procedures (three or more) is actually associated with better visibility and accessibility for surgeons. Surgeons using this technical have also reported better ergonomics with less operating fatigue related to awkward body positioning while operating.
The learn curve for this surgical approach is less than anticipated due to the reasons cited above, and has been cited at 5 to 20 cases by Dr. Gonzalez, the creator of this approach.
The main limitations for surgeons using this technique is often related to anticipated (but potentially unrealized) fears regarding the need for urgent conversion to open thoracotomy. In reality, many of the complications that may lead to urgent conversion, such as major bleeding, are manageable thoracoscopically once surgeons are experienced and comfortable with this approach.
Dr. Gonzalez and his colleagues have reported a conversion rate of less than 1% in their practice. Subsequent reports by Dr. Gonzalez and his colleagues have documented these findings.
Other barriers to adoption of this technique are surgeon-based, and may be related to the individual surgeon’s willingness or reluctance to adopt new techniques and technology. Many of these surgeons would be surprised by how this technique mimics open surgery.
The successful adoption of this technique by numerous thoracic surgery fellows shows the feasibility and ease of learning single-port thoracoscopy by surgeons interested in adopting and advancing their surgical proficiency in minimally invasive surgery.
The benefits for utilizing this technique include decreased length of stay, decreased patient discomfort and greater patient satisfaction.
